Integrated Groundwater Pumping Pipe
The seam guard feature of this pipe prevents damage due to detachment or tangling of related cables and water level measuring pipes. It is used for pumping groundwater to the surface and is made of stainless steel, available in both flange and socket types.
-
Certified for excellent product performance by the Ministry of SMEs and Startups
-
Certified for safety regarding harmful substances that can be leached from water supply materials
-
Certified for safety as a water supply material
-
Received quality assurance for the quality management system and the product
| Registration number | Name |
|---|---|
| 10-1625806 | Socket Assembly for Deep Well Development |
| 10-1626727 | Flange Assembly and Construction Method for Deep Well Development |
| 10-2432178 | Integral fixing bracket for pumping pipe and water level measuring pipe |
| 10-2496394 | Joint assembly of water pumping pipe for groundwater well with both flange and socket function |
| 10-2589239 | Pumping bracket with reinforced function to fix multiple pipes integrally |
Product Types
These are the currently producible product types. Please note that the product lineup may change, so consult with a representative for the latest information.

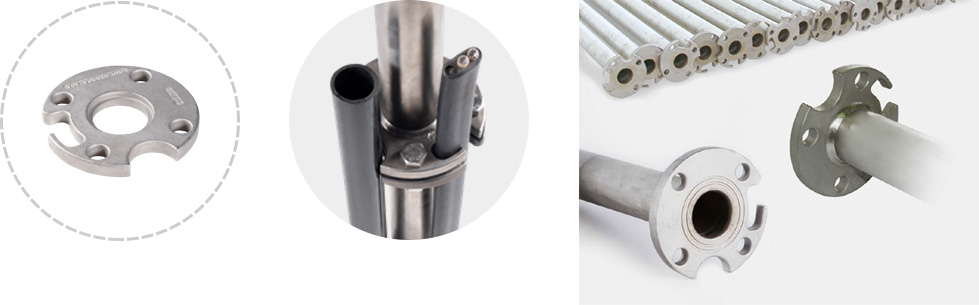

Groundwater Integrated Pumping Pipe Flange Type
Groundwater Integrated Pumping Pipe Socket Type
Groundwater Integrated Pumping Pipe Protrusion Type
Product Features
This product is registered with the Public Procurement Service MAS, and its material and performance have been verified by accredited institutions.
- Produced with welding automation equipment for consistent high-quality, standardized products.
- Improved resistance to bending due to thermal deformation.
- Enhanced straightness and reduction in twisting of underwater cables and water level measuring pipes.
- Material features - STS304 with excellent corrosion and heat resistance; STS316L is strong against seawater salinity.
Product Specifications
These specifications pertain to the integrated groundwater pumping pipes produced by Hankyul Technics Inc. Specifications are subject to change, so please confirm and consult with a representative.
| Groundwater Pumping Pipe [Pipe] optimized for construction efficiency through an automated production process that prevents thermal deformation | ||||
|---|---|---|---|---|
| Category | Specification | Item Name | Product Identification Number | |
| Socket Type [S] |
40A | 3.0T | HTSPS-40A-6M-3.0T, ∅48.6 x t3.0mm x 6m | 23289205 |
| 50A | 3.0T | HTSPS-50A-6M-3.0T, ∅60.5 x t3.0mm x 6m | 23289213 | |
| 65A | 3.0T | HTSPS-65A-6M-3.0T, ∅76.3 x t3.0mm x 6m | 23289218 | |
| 80A | 3.0T | HTSPS-80A-6M-3.0T, ∅89.1 x t3.0mm x 6m | 23289223 | |
| 100A | 3.0T | HTSPS-100A-6M-3.0T, ∅114.3 x t3.0mm x 6m | 23373438 | |
| Flange [F] |
40A | 2.5T | HTSPF-40A-6M-2.5T, ∅48.6 x t2.5mm x 6m | 23289199 |
| 3.0T | HTSPF-40A-6M-3.0T, ∅48.6 x t3.0mm x 6m | 23289200 | ||
| 50A | 3.0T | HTSPF-50A-6M-3.0T, ∅60.5 x t3.0mm x 6m | 23289208 | |
| 65A | 3.0T | HTSPF-65A-6M-3.0T, ∅76.3 x t3.0mm x 6m | 23289216 | |
| 80A | 3.0T | HTSPF-80A-6M-3.0T, ∅89.1 x t3.0mm x 6m | 23289221 | |
| 100A | 3.0T | HTSPF-100A-6M-3.0T, ∅114.3 x t3.0mm x 6m | 23373439 | |
| Flange Protrusion [FG] |
40A | 2.5T | HTSPFG-40A-6M-2.5T, ∅48.6 x t2.5mm x 6m | 23289202 |
| 3.0T | HTSPFG-40A-6M-3.0T, ∅48.6 x t3.0mm x 6m | 23289203 | ||
| 50A | 3.0T | HTSPFG-50A-6M-3.0T, ∅60.5 x t3.0mm x 6m | 23289211 | |
