Groundwater Upper Protection
'Line Lock' is installed below the surface by a flange method on the exposed part of the well(casing), providing a sealed setup. Compared to existing groundwater well protection facilities, this product significantly enhances the prevention of groundwater contamination, ease of maintenance, and the external appearance of the groundwater well.
-
Received quality assurance for the quality management system and the product
| Registration number | Name |
|---|---|
| 10-1903469 | Ground Water Top Protection with Easy Replacement and Maintenance |
| 30-1126926 | Upper protection case for groundwater wells |
| 30-1126928 | Upper protection case for groundwater wells |
Product Types
These are the types of products that can currently be produced. Production items are subject to change, so please consult with the person in charge.

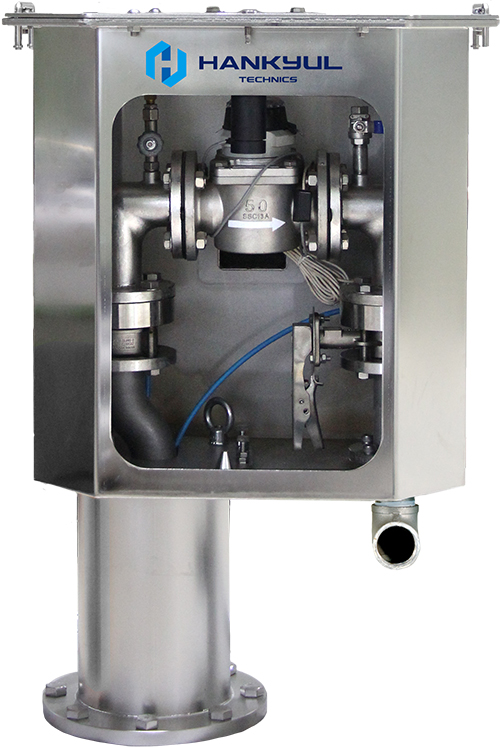

Upper Protection (Integrated Panel Type)

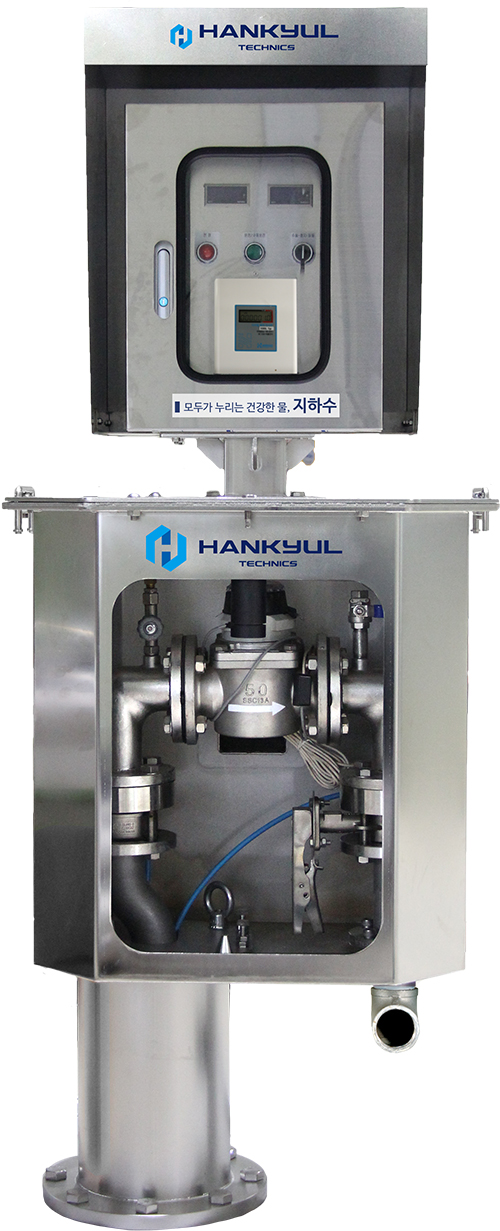

Upper Protection (Closed Type)

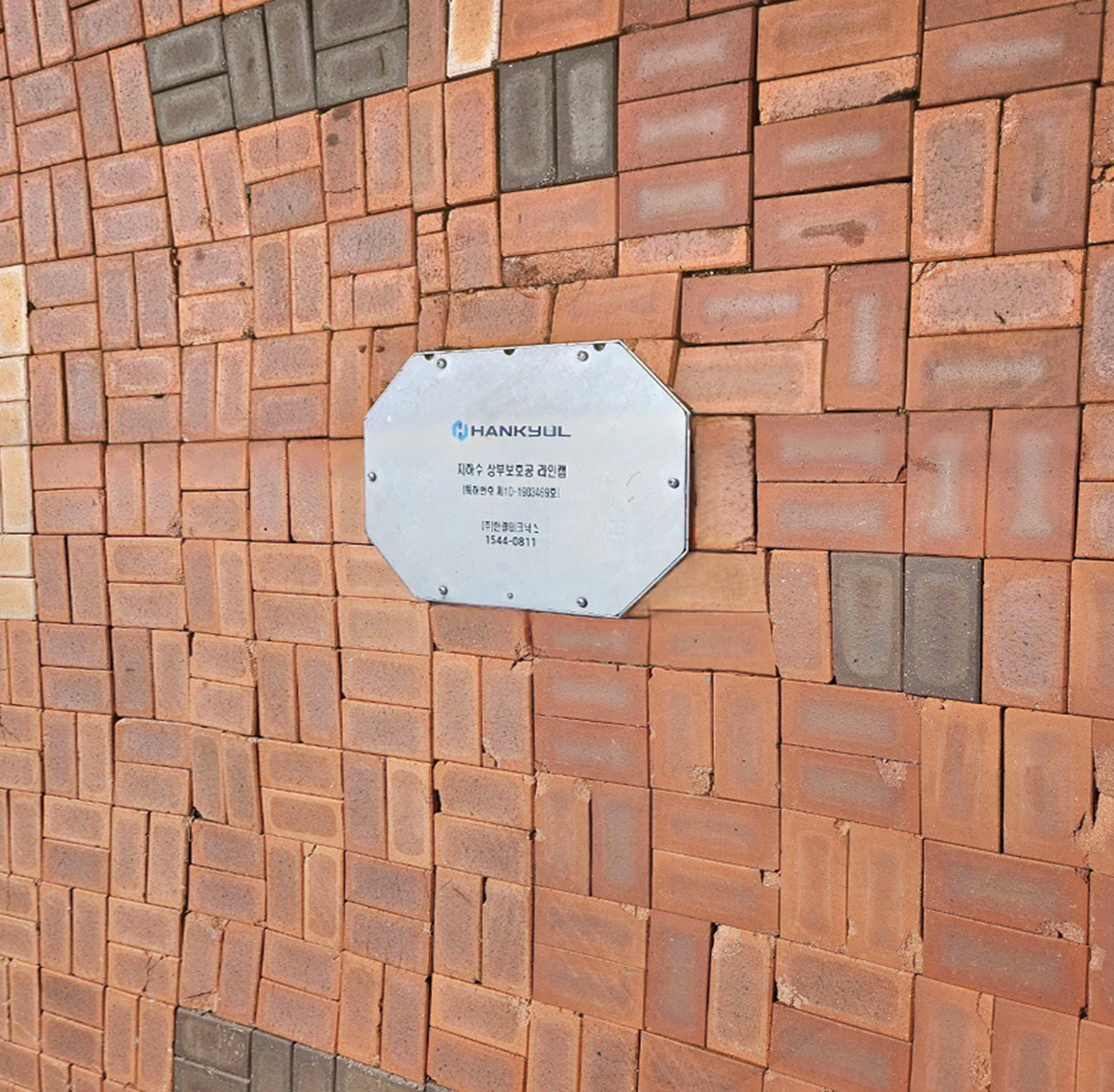

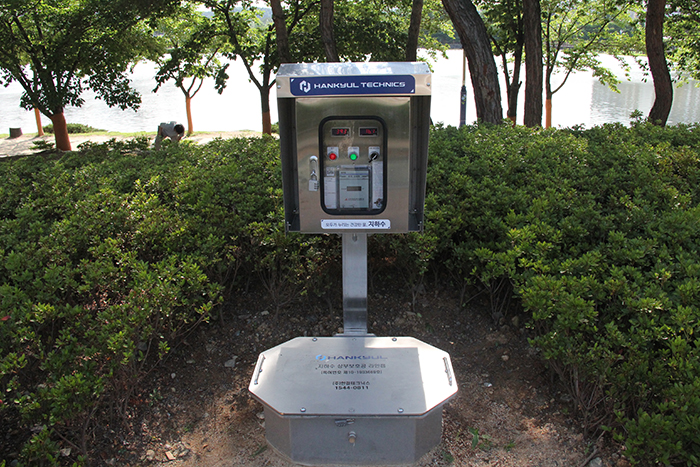

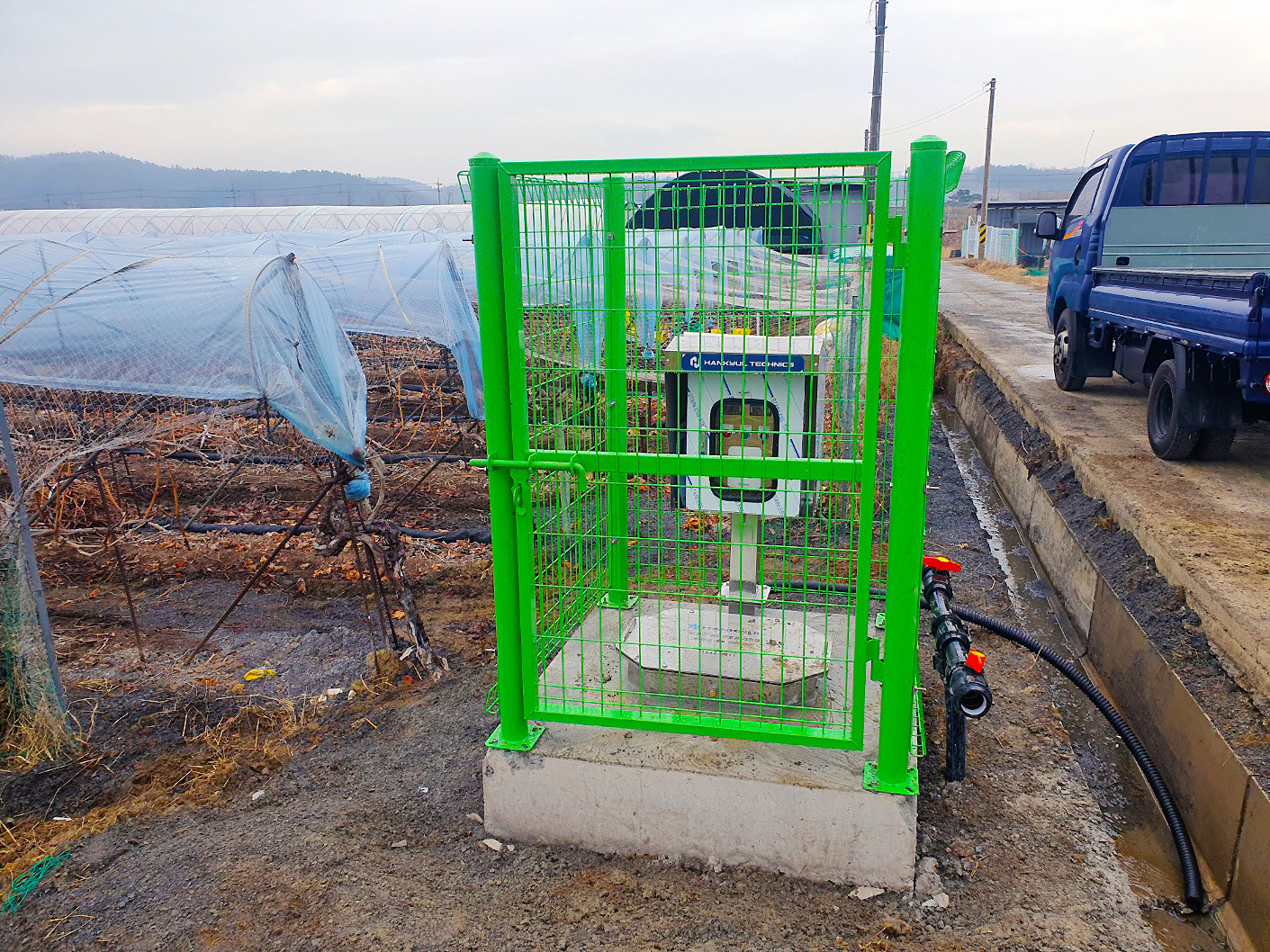

Site Application Photos
Product Features
This product is registered with the Public Procurement Service MAS and has had its material and performance quality verified by accredited institutions.
- Made of stainless steel (304) for durability and corrosion resistance
- Sealed structure to prevent external contaminants from entering and to protect against groundwater pollution
- Designed to be strong against external impacts to prevent damage to internal pumping facilities
- Composed of parts that do not pose a risk of water pollution
- Equipped with an air vent on the pipe to prevent freezing in winter
- Pressure gauge attached for easy onsite determination of submersible motor failure
- Butterfly valve attached for testing and adjusting water pressure in the water supply pipeline
-
- Applied Technology
- Intellectual Property: Patent 10-1903469 (Ground Water Top Protection with Easy Replacement and Maintenance)
- It is characterized by including an upper protection structure that is detachably connected between the pipe assembly (casing, pumping pipe) of the groundwater well, located at the top of the pipe assembly, and the main body equipped with a water discharge device that discharges groundwater moved through the pumping pipe to the outside, ensuring the pumping pipe is sealed and interacts with the discharge device of the main body.
Product Specifications
These specifications are for the integrated pumping pipes for groundwater produced by Hankyul Technics and are subject to change. Therefore, please make sure to check the specifications and consult with the person in charge.“
| MAS – Groundwater Upper Protection | ||||
|---|---|---|---|---|
| Category | Specification | Item Name | Product Identification Number | |
| Groundwater Upper Protection [4014179801] |
Integrated Panel Type |
LINECAP-A-680-200A | ∅200 x 1000 x t3mm, STS304 | 23591240 |
| LINECAP-A-680-250A | ∅250 x 1000 x t3mm, STS304 | 23591241 | ||
| LINECAP-A-580-200A | ∅200 x 1000 x t3mm, STS304 | 24220424 | ||
| Enclosed Type | LINECAP-B-680-200A | ∅200 x 1000 x t3mm, STS304 | 23591243 | |
